Mfg. P/N ATC-RE-01 Model No. 6338 – OPTIPOP R Refillable Cassette Cleaner for All Single Fiber and Female MT Ferrules
Single Slot Cassette Cleaner for Cleaning All Single Fiber and Female MT Ferrule Connectors.
Refillable using Mfg. P/N ATC-RS-01 Model No. 6232 Refills. Refills sold by the Pack of 6 and each Refill is Good for Approximately 400+ Cleanings.
♦ Replacement Reels are easy to install and reduce the cost per cleaning
♦ 400+ Cleanings per Replacement Reel
♦ Eliminates electrostatic charge
♦ The washed, ultra clean micro-fiber cloth captures debris and other contamination
♦ The cloth is robust, it does not fray or leave any fibrous materials behind
♦ The most cost effective high-end cleaning solution available
♦ FTTX work sites installing OptiTap® drop cables
♦ Data center installation and preventative maintenance
♦ Central office and head end new equipment installations and preventive maintenance
♦ Production facilities that terminate fiber optic cable assemblies
♦ Testing and measuring laboratories using optoelectronic equipment
♦ Any application that uses unmated fiber optic connectors
The OPTIPOP R is a cassette style fiber optic connector cleaner system that can be refilled for reducing cleaning costs. It uses a densely woven micro-fiber cleaning fabric to remove harmful contaminates off of the ferrule end face. The OPTIPOP R cassette cleaning tool will accommodate all single fiber connections. EESI has versions of the OPTIPOP R cassette cleaning tools that are designed specially for cleaning multi-fiber connector systems including the MTP® Brand Connectors, standard MPO and MTRJ connectors for both singlemode and multimode connectors. The customized OPTIPOP R cassette cleaning tool will accommodate the alignment guide pins on male MT ferrules. EESI has a version of the OPTIPOP R cassette cleaning tool that is ideal for field use at FTTX work sites. This version accommodates the OptiTap® connector housing making it ideal for technicians that need to clean OptiTap® plug connectors on drop cables.
The anti-static cloth material produces a pristine fiber tip and minimizes contaminant attraction. The cleaning fabric is pre-washed and produces less than 70 pcs/CFM of particles > 1mm in size, making this system excellent for use in any production environment including clean rooms.
|NTT-AT P/N||Model No.||Description|
|ATC-RE-01||6338||OPTIPOP R – Single Slot|
For Cleaning All Single Fiber and Female MT Ferrule Connectors

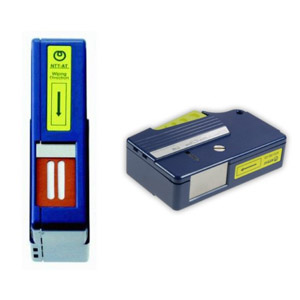

|ATC-RE-02||6437||OPTIPOP R – Two Slot|
For Cleaning All 2.5mm Ferrules and LC Duplex Connectors

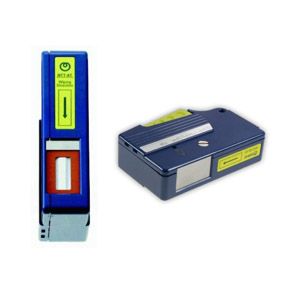

|ATC-RE-03||6339||OPTIPOP R – MPO with Pins|
For Cleaning Male MPO Connectors with Pins

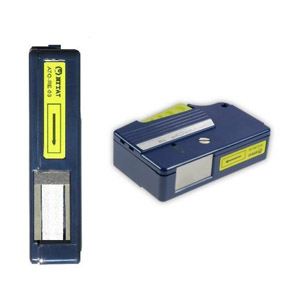

|ATC-RE-03W||8057||OPTIPOP R – OptiTap® Plug Connectors|
For Cleaning OptiTap® Plug Connectors on FTTX Drop Cables
|ATC-RE-04||6340||OPTIPOP R – MT-RJ with Pins|
For Cleaning Male MT-RJ Connectors with Pins

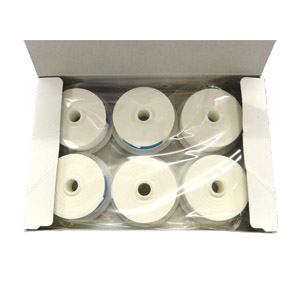

|ATC-RS-01||6232||OPTIPOP R – Refills|
Replacement Reels for All OPTIPOP R Cassettes – 6 per Pack
